254 SERIES
BLG254 WR

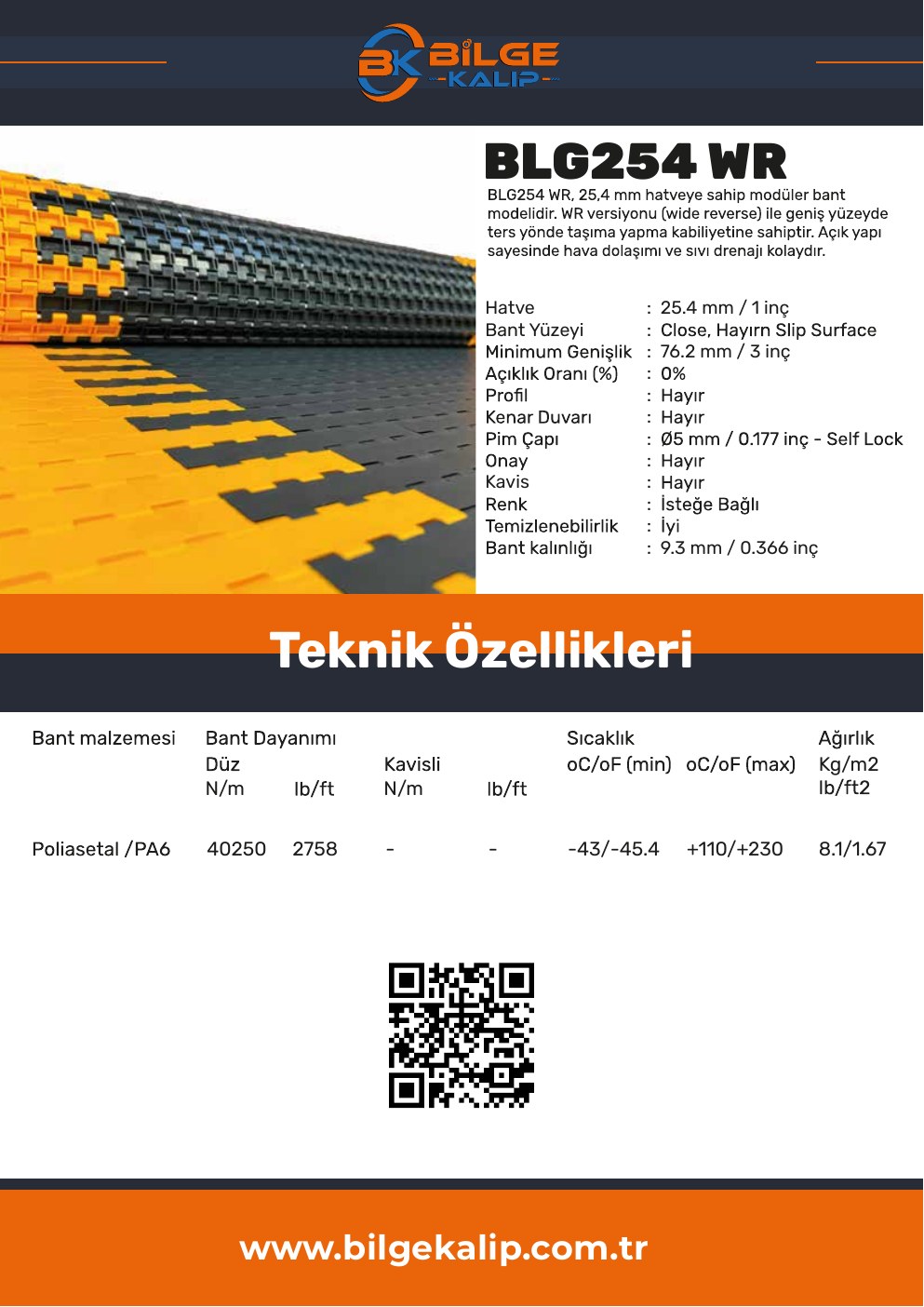

BLG254 WR is a Bilge Kalıp 254 series modular belt model. Pitch: 25.4 mm / 1 in. Belt surface: Close, Non Slip Surface. Review technical data, product image and material table.
Catalogue informationThis page is for product information only. There is no online sale or checkout.
TECHNICAL SPECIFICATIONS
BLG254 WR Technical Data
Pitch25.4 mm / 1 in
Belt SurfaceClose, Non Slip Surface
Minimum Width76.2 mm / 3 in
Open Area (%)0%.
FlightNo
SidewallNo
Pin DiameterØ5 mm / 0.177 in - Self Lock
ApprovalNo
CurveNo
ColorOptional
CleanabilityGood
Belt Thickness9.3 mm / 0.366 in
Belt Material / Strength / Temperature
| Belt Material | Straight Strength | Curve Strength | Min. Temperature | Max. Temperature | Weight | ||
|---|---|---|---|---|---|---|---|
| N/m | lb/ft | N/m | lb/ft | °C / °F | °C / °F | Kg/m² / lb/ft² | |
| Polyacetal / PA6 | 40250 | 2758 | – | – | -43 / -45.4 | +110 / +230 | 8.1 / 1.67 |
About BLG254 WR Modular Belt
BLG254 WR is a Bilge Kalıp 254 series modular belt model. Pitch: 25.4 mm / 1 in. Belt surface: Close, Non Slip Surface. Review technical data, product image and material table.
- Pitch: 25.4 mm / 1 in
- Belt surface: Close, Non Slip Surface
- Minimum width: 76.2 mm / 3 in
- Open area: 0%.
- Cleanability: Good
- Approval: No
Application evaluation
Technical selection should consider the conveyed product, belt width, line length, speed, load, temperature, cleaning routine, chemical exposure and transfer points together with the product code.
Material and operating conditions
The technical table below shows catalogue strength, temperature and weight values for available polypropylene, polyethylene and polyacetal options. Final material selection should be based on operating conditions.
TECHNICAL INFORMATION
Let us evaluate your application for BLG254 WR.
Share line and operating conditions with the Bilge Kalıp technical team.
